Other sizes and (part box) quantities available. Please contact us with your requirements.

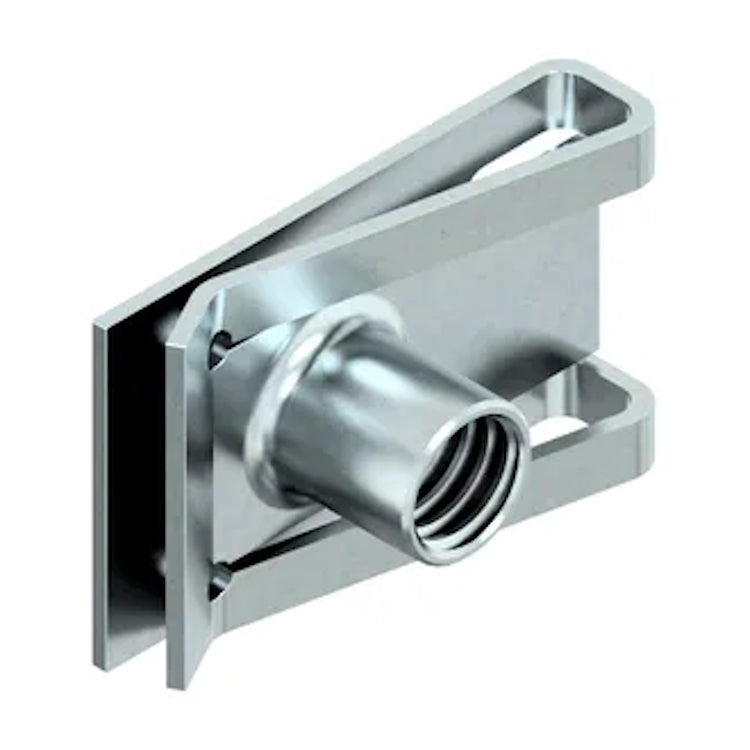

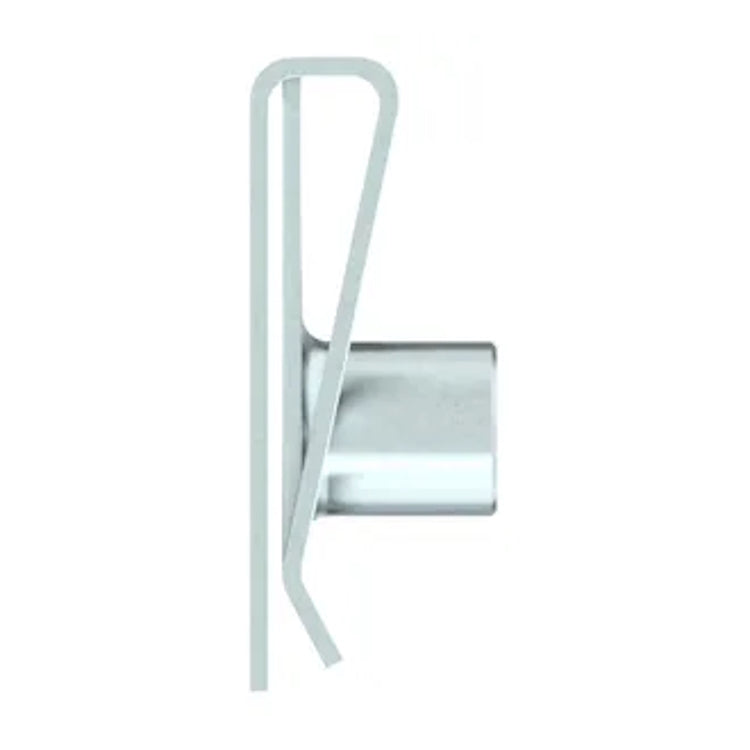

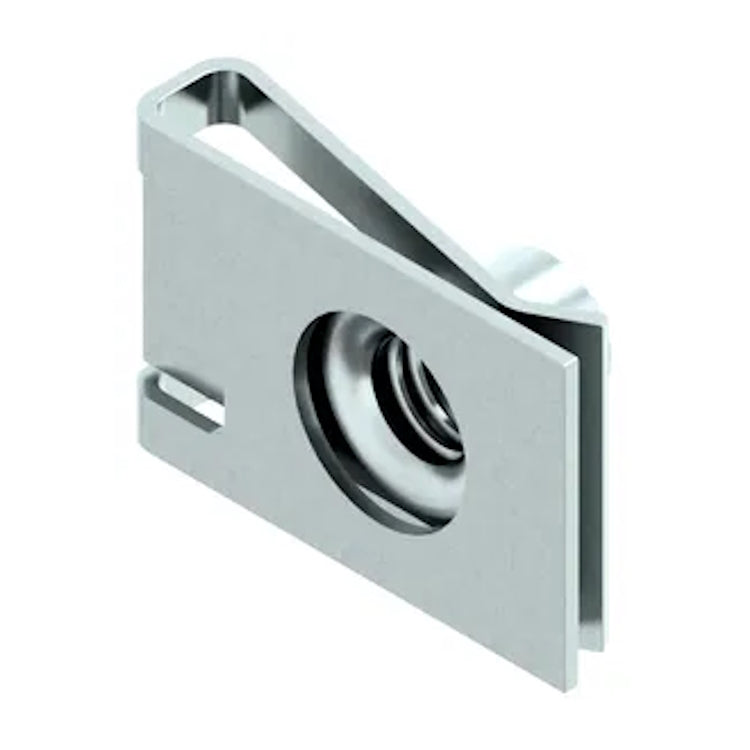

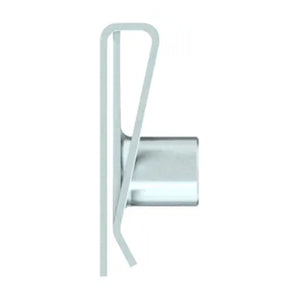

Speednuts, also known as U nuts, spire clips, chimney nuts, lug nuts, speed clips etc.
Internally threaded to accept metric bolts and screws.
Threads are standard metric coarse pitch (most common).
Provide a strong fixing where two panels need holding together.
Manufactured from zinc plated spring steel.
Specifications:
Material: Spring steel
Thread direction: Right
Surface treatment: Zinc plated
Thread: Metric
Type no.: SNU

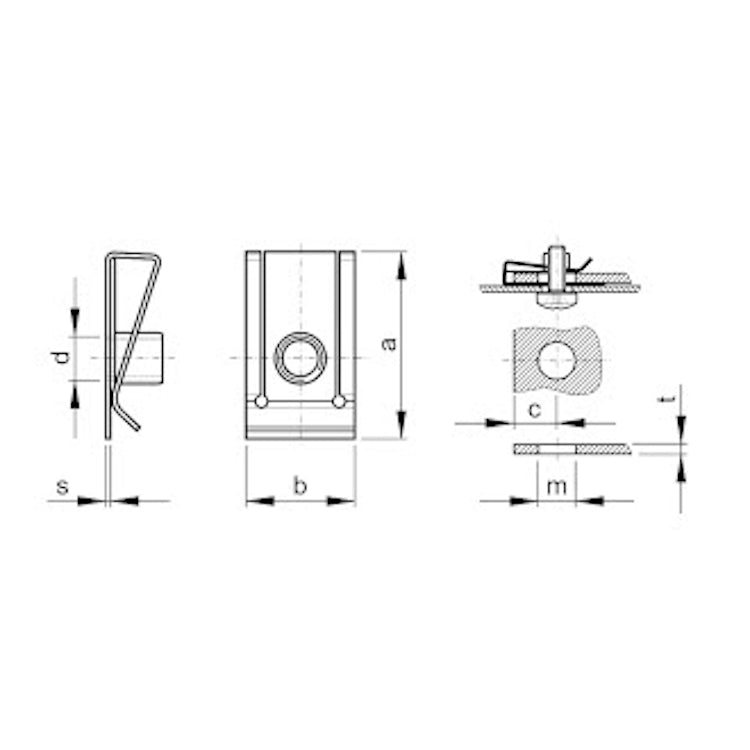

M5 Dimensions:
a - 20.4mm
b - 15mm
c - 10.5mm
d - 5mm
m - 5.3mm
s - 0.6mm
M6 Dimensions:
a - 23.6mm
b - 16mm
c - 11.5mm
d - 6mm
m - 6.4mm
s - 0.8mm
M8 Dimensions:
a - 27.5mm
b - 18mm
c - 13mm
d - 8mm
m - 8.4mm
s - 1mm
Note: Some sizes are not held in stock. For those not in stock most are available in 24hrs but in some cases there may be a 7-day delay. If there is to be any delay we will contact you with delivery dates when we receive your order. Alternatively, please contact us before placing your order to check availability.
